895nm High Power VCSEL Packaging Playbook: Non-Magnetic, SMD & Custom

At Ace Photonics Co., Ltd., we manufacture VCSELs end-to-end—from epitaxial wafer to finished package. This practical playbook distills what our packaging engineers have learned while supporting systems at 895 nm and 795 nm, with two focus areas our customers ask for most: non-magnetic assemblies for quantum-grade stability and compact SMD formats that run flawlessly on high-volume SMT lines. You’ll see how we specify windows, caps, plating stacks, and even tiny fasteners to protect your optical field and keep output consistent.

At a Glance: Packaging That Fits the Application

Different teams need different things. A lab tuning cesium or rubidium transitions needs a magnet-quiet package and pristine windows. A wearable or module maker needs a small SMD VCSEL that survives reflow without optical drift. Systems groups often request custom caps, AR targets, and reliable heat paths for long-duty operation. Our portfolio covers all three: non-magnetic, SMD, and fully custom.

Where 895nm High Power VCSELs Excel

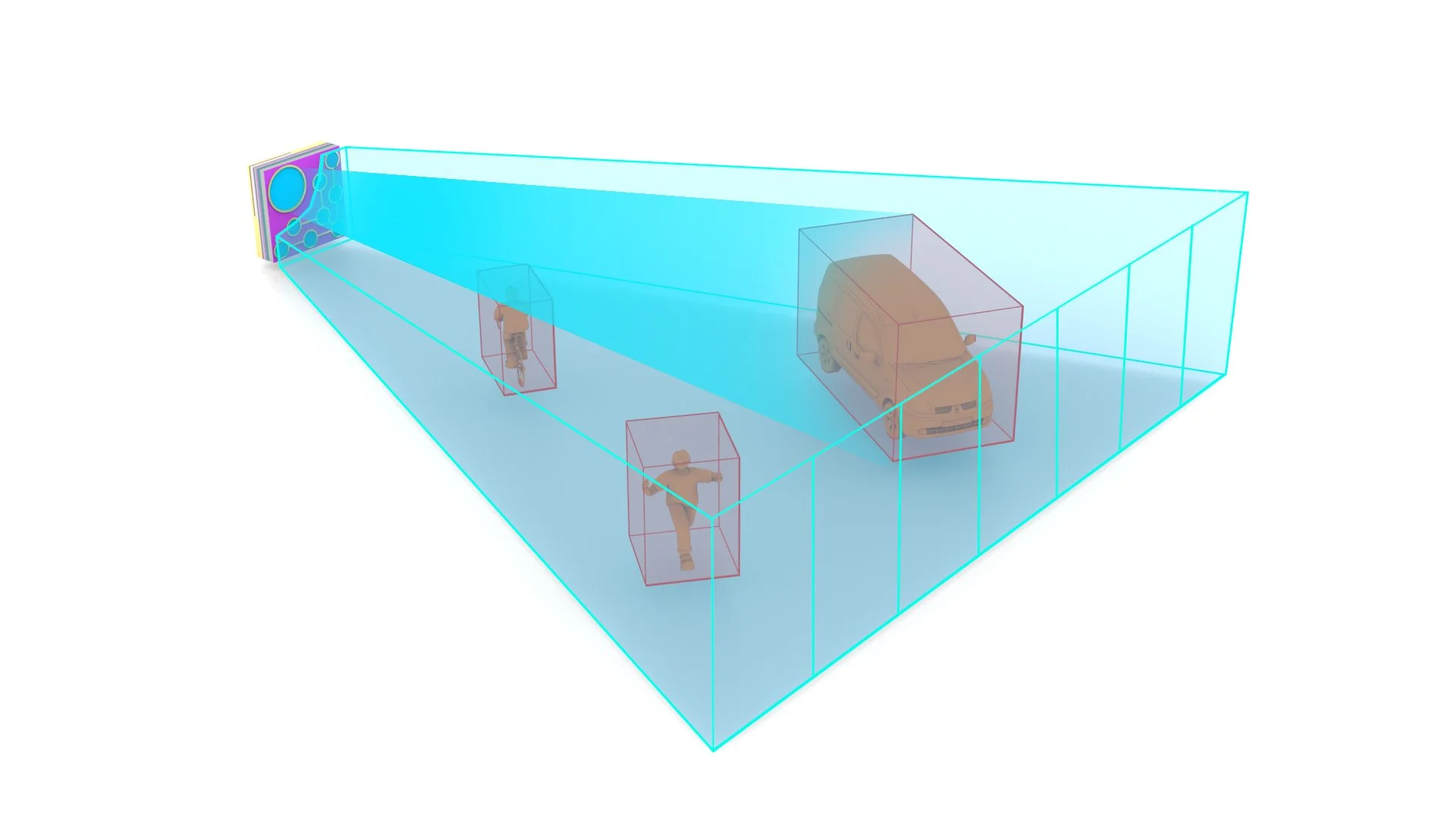

895 nm aligns naturally with cesium D1 interactions and 795 nm with rubidium D1. Builders of vapor-cell optics, chip-scale timing sources, and sensitive field sensors favor these bands for clean coupling and compact layouts. Beyond atomic systems, 795/895 nm supports select bio-optical paths and short-range ranging where lower scatter through tissue, fog, or aerosols is helpful.

Why Non-Magnetic Hardware Matters Near Atoms

Magnetic components near a vapor cell can distort bias fields and complicate locks. Even trace ferromagnetism in screws, caps, or plating may create small gradients that wander with temperature or stress. A magnet-free package preserves a quiet environment so your lock remains stable and your device repeats hour after hour.

Non-Magnetic Packaging for Quantum Sensing

Materials That Keep Stray Fields Quiet

Our non-magnetic builds exclude nickel, cobalt, and standard steels. We use alumina or AlN ceramics, copper/gold traces, and lids of fused silica, glass, or sapphire. When a metal lid is unavoidable, we select alloys free of ferromagnetic phases. Brazes and solders are chosen to remain nickel-free, yielding a package that sits beside a vapor cell without tugging the field off track.

Metallization & Plating Without Nickel

Many off-the-shelf footprints hide a nickel diffusion barrier under gold. Where the layout allows, we replace that layer with TiW or Cr and finish with gold for bondability and corrosion resistance. Leadframes and carriers follow a “no-Ni, no-Co” sourcing rule. Bond pads are wire-bond friendly yet qualified for humidity and salt-mist exposure.

Fasteners and Fixtures That Don’t Skew the Field

Mounting kits often include stainless parts with residual magnetism. We supply titanium or brass hardware in non-magnetic grades and polymer standoffs for isolation. Spacers and keepers are magnet-screened and recorded so your BOM remains magnet-clean end-to-end.

795 nm / 895 nm 1 mW VCSELs in Magnet-Free Packages

We build tailored 1 mW emitters at 795 nm and 895 nm in magnet-free housings for lab rigs and ruggedized field modules. You choose window material, AR target, and footprint; we design the stack-up so the part stays stable through thermal cycles and minor board flex. Need tight wavelength bins, narrow divergence, or a defined aperture? We bin at wafer level and again after assembly to lock in your spectral and beam specs.

Package Families & Pinouts

Popular families include ceramic LCC/LGA, mini-TO (magnet-free variants), and ultra-compact chip-on-board. Pinouts are intentionally simple—clearly marked anode/cathode lands with generous optical keep-outs. For arrays, we offer common-anode or common-cathode routing to match your driver topology.

Windows, Caps & Seals

Windows are available in fused silica, BK7, or sapphire with single- or dual-side AR tuned to 795 or 895 nm. We can tilt or wedge the window to cut back-reflections. For rugged caps, we pair low-outgassing adhesives or AuSn seam seals with controlled venting features to avoid pressure pops during reflow. Every adhesive and sealant is screened for magnet content and outgassing.

SMD Options for Fast SMT Lines

Footprints & Tape-and-Reel for Volume

Our SMD VCSEL bodies are shaped for pick-and-place with crisp fiducials and flat lands—no gull-wings to snag. We ship tape-and-reel for production and cavity trays for pilots. Each lot includes moisture sensitivity labels and bake guidance so your line remains predictable.

Reflow & Handling Guidance

Follow our reflow profile and allow a gentle cool-down to reduce stress at the window interface. Store reels in dry cabinets. Use soft vacuum nozzles to prevent cap scratches. After wash, confirm no residues on the window—a quick bright-field check catches most smudges.

Thermal Strategy for Stable Optical Power

Heat Paths from Junction to Board

Output and wavelength both drift with temperature. We minimize swing by giving the die a short, wide thermal path to copper: thick planes, thermal vias under the pad, and metal-core or heavy-copper PCBs for higher duty cycles. In modules, we add direct-metal-bonded ceramic or a vapor chamber when you plan to drive current hard.

TIMs, Solders & Attach Stacks

For die and submount attach, AuSn or SAC alloys keep voiding low when profiles are tuned. Thermal pads beneath the package spread heat into the board; for modules we lap the base and use thin TIMs to trim interface resistance. We validate stacks with power cycling and soak-and-bake so drift stays small over life.

Driver & System Basics for 895nm High Power Arrays

Current Limits, Duty Cycles & Eye Safety

Stay within our datasheet current window and manage duty cycle. Short pulses deliver sharp bursts with less heat; continuous drive sets your total flux ceiling. Keep power routes short and wide, place decoupling near the device, and separate high-current returns from sensitive sensor traces. For eye safety, implement interlocks and soft-start to eliminate spikes.

Beam Shaping & Alignment Wins

A VCSEL typically produces a near-Gaussian core with friendly divergence. Micro-lens arrays, diffusers, or compact aspheres tailor the beam for your cell or detector. Set window tilt to reduce etalon fringes, match AR to your passband, and leave space for easy focus tweaks inside the enclosure.

Custom Work: Magnet-Free or Standard—Your Choice

We build to specification: fully magnet-free for quantum programs, or standard magnetic stacks when cost and lead time are paramount. Windows may be flat, wedged, or domed; coatings can be narrowband AR at 795 or 895 nm or a broadband stack if you operate both bands. Need a black cap to tame stray light or a clear lid for an onboard lens? We machine and finish those in-house.

AR Targets & Thickness Tuning

Coatings target your passband with low reflectance and low scatter. Window thickness and wedge are matched to your cavity to prevent back-reflection-induced instability. If your sensor sits off-axis, we can bias the AR target by a few nanometers to maintain low return loss at angle.

From Bare Die to Module: How We Build With You

  1. Die selection & binning for wavelength, threshold, and power.

  2. Package/module definition (footprint, window, attach plan).

  3. Pilot assembly and light-up checks with optical & thermal data.

  4. Feedback loop from your bench (alignment, mounting).

  5. Scale-up with locked processes and documented Cpk.

Common Integration Pitfalls to Avoid

ESD, Cleanliness & Lens Smudges

VCSELs are robust in the field yet sensitive on the bench. Use ESD straps and grounded benches, keep caps clean, and avoid touching windows with gloves. Lenses collect haze from flux or wash residues; a controlled airflow path and clean assembly steps keep optics clear.

Supply Chain & Quality Checkpoints

We perform wafer-level screens for optical power, threshold, and wavelength bins. Post-package tests verify power at drive, beam shape, and window cosmetics. Burn-in removes early drifters. Each reel and tray carries lot IDs that trace back to wafer, attach, and plating runs.

Compliance & Export

Materials are RoHS-compliant; low-halogen on request. We manage plating and solvent usage, recycle carriers, and design trays for reuse. Certain wavelengths/modules may require export paperwork depending on your region—we’ll flag this early to keep logistics smooth.

Why Ace Photonics

  • End-to-end manufacturing control from wafer to package

  • Proven non-magnetic builds for quantum sensing and metrology

  • SMD options qualified for high-volume SMT lines

  • Deep customization across windows, caps, arrays, and AR stacks

  • Data-driven validation with thermal and reliability testing

Ready to discuss an 895nm high power design? Share your beam target, thermal envelope, and footprint, and we’ll spec a package that drops in on day one.
