Light Up Your Knowledge: Everything You Need to Know About Laser Diodo

A Laser diodo is a semiconductor device that emits coherent, highly directional light via stimulated emission. Unlike incandescent lamps or general LEDs, a laser diodo produces a narrow spectrum, tightly focused beam that is easy to collimate and modulate—ideal for communication, sensing, and precision processing.

Why Laser diodo Technology Matters

From supermarket barcode readers to data-center interconnects and medical tools, Laser diodos combine small size, high electrical-to-optical efficiency, and precise controllability. These strengths drive miniaturization, performance gains, and new product categories across telecommunications, industry, healthcare, and consumer electronics.

Wavelength Output Power Package Datasheet
790nm/795nm 0.1mW Bare Chip/TO/Customized Datesheet
790nm/795nm 1mW Bare Chip/TO/Customized Datesheet
790nm/795nm 1.8mW Bare Chip/TO/Customized Datesheet
890nm/895nm 0.1mW Bare Chip/TO/Customized Datesheet
890nm/895nm 1mW Bare Chip/TO/Customized Datesheet
890nm/895nm 1.8mW Bare Chip/TO/Customized Datesheet
760nm/763nm 0.3mW Bare Chip/TO/Customized Datesheet

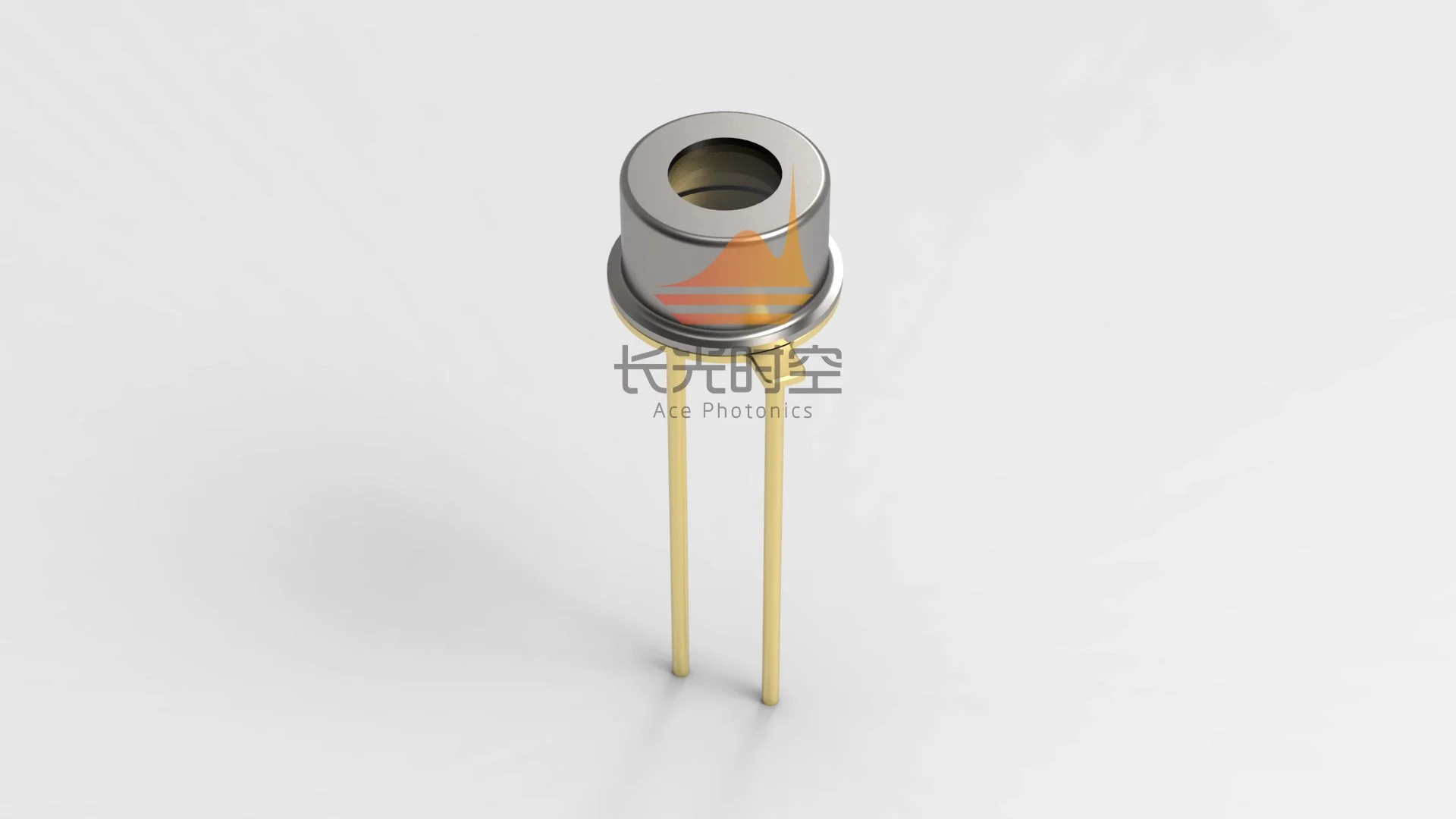

Laser diodo

How a Laser diodo Works

Semiconductor Materials and Junction

Most devices are built on GaAs (gallium arsenide) or InP (indium phosphide) platforms; shorter wavelengths often use GaN (gallium nitride) alloys. Inside, a p-n junction / quantum well converts injected current into photons as electrons and holes recombine.

Stimulated Emission and Cavity Feedback

A micro-resonator—commonly a Fabry–Pérot cavity, or wavelength-selective DFB/DBR design—provides optical feedback. Once gain exceeds losses (the threshold current, I_th), stimulated emission dominates and the device outputs coherent, highly directional laser light.

Main Types of Laser diodos

  • Continuous-Wave (CW)
    Delivers steady optical power; common in laser printers, barcode scanning, pumping sources, and stable illumination.

  • Pulsed
    Emits short, high-peak pulses for time-of-flight ranging, certain medical procedures, and surface processing.

  • Single-Mode vs. Multi-Mode

    • Single-mode: superior beam quality and coherence (high SMSR), ideal for optical fiber communications and precision sensing.

    • Multi-mode: higher output power and relaxed alignment tolerances, suitable for near-field illumination and materials processing.

  • Emission Geometry

    • Edge-emitting (EEL): broad power range; used widely in telecom and industrial systems.

    • VCSEL (vertical-cavity surface-emitting): easy array integration and cost-effective; popular in 3D sensing, short-reach links, and consumer devices.

Core Applications

  • Telecom & Datacom: backbone of fiber-optic links, enabling high-speed, long-distance data transfer with low loss.

  • Industrial Processing: precision cutting, welding, cladding, engraving on metals and polymers.

  • Sensing & Ranging: LiDAR, displacement/velocity metrology, and gas sensing using stable, tunable sources.

  • Medical & Aesthetics: tissue coagulation, photodynamic therapy, dermatology (always follow applicable laser-safety and medical regulations).

  • Consumer Electronics: barcode reading, laser projection, autofocus assistance, and 3D structured-light modules.

Advantages and Limitations

Advantages

  • High efficiency (excellent electrical-to-optical conversion).

  • Compact, integrable form factor for modules and embedded systems.

  • Fast modulation (direct or external), supporting high-data-rate links.

  • Controlled beam with low divergence for efficient coupling and focusing.

Limitations

  • Temperature sensitivity: wavelength and power drift with junction temperature; requires thermal management.

  • Finite coherence length: can limit certain interferometric or holographic uses.

  • Driver & packaging demands: reliability-critical designs need quality drivers, ESD protection, and robust packaging.

Selecting the Right Laser diodo: A Practical Checklist

  1. Wavelength (nm): match material absorption, detector response, or fiber window (e.g., 850, 940, 1310, 1550 nm).

  2. Output Power: CW power (mW–W) or pulse peak power for ranging/processing.

  3. Beam Quality: divergence, M², and SMSR (especially for single-mode needs).

  4. Modulation Requirements: bandwidth and method (direct vs. external modulation).

  5. Coupling Method: free-space vs. fiber coupling (SMF/MMF/PMF), target coupling efficiency, and connector type.

  6. Thermal & Package: TO-can, C-mount, butterfly, integrated TEC/thermistor options.

  7. Reliability: operating temperature range, burn-in data, MTTF and lifetime projections.

Pro tip: For tight beam quality and polarization stability (precision comms/sensing), consider single-mode DFB/DBR/VCSEL. For higher energy density or throughput in processing, multi-mode arrays or stacks plus strong heat-sinking are often best.

Care, Handling, and Safety

  • Handling & Storage: protect from moisture, dust, and ESD. Store unused parts in antistatic, low-humidity packaging.

  • Cleaning: use optical-grade swabs, reagent-grade isopropyl alcohol, or clean dry air; avoid touching facets.

  • Electrical Safety: always use a constant-current laser driver with soft-start and over-current protection; avoid reverse bias.

  • Thermal Management: appropriate heat spreaders, interface materials, and TEC control to stabilize junction temperature and extend lifetime.

  • Laser Safety: follow IEC 60825 and local regulations. Wear wavelength-appropriate eyewear with adequate optical density (OD).

Laser diodo vs. LED (Quick Contrast)

  • Beam: laser diodo offers narrow, easily focused beams; LEDs are typically diffuse.

  • Speed: laser diodos support high-speed modulation for data links; LEDs are slower.

  • System Complexity: laser diodos demand stricter driving and thermal control, raising system complexity compared with LEDs.

Where the Field Is Heading

  • Higher Efficiency & Power Density: material and facet-passivation advances continue to raise PCE and reliability.

  • Miniaturization & Integration: tighter integration with drivers, optics, and sensors for AR/VR, wearables, and implants.

  • Broader Wavelength Coverage: improved performance in short-wave (UV/blue) and mid-IR for new processing and sensing niches.

FAQ

Q1. How long does a Laser diodo last?
A. Lifetime depends on junction temperature, driving conditions, and packaging quality. With good thermal management and a stable current driver, MTTF can reach tens of thousands of hours.

Q2. When should I choose CW vs. pulsed?
A. Choose CW for steady illumination or constant optical power. Use pulsed for high peak power, time-resolved measurements, or ranging.

Q3. Can I connect a Laser diodo directly to a power supply?
A. Avoid doing so. Use a constant-current laser driver with soft-start/over-current protection; add Bias-T and TEC control when needed.

Q4. Single-mode or multi-mode?
A. Single-mode offers better beam quality and fiber coupling into SMF. Multi-mode yields higher output power and more tolerant alignment for near-field tasks.
