VCSEL Integration in High Power Laser Diode Manufacturing
A high-power laser diode delivers strong optical output with excellent electrical-to-optical efficiency, making it a mainstay in industrial processing, medical systems, and sensing. A VCSEL (vertical-cavity surface-emitting laser) emits perpendicular to the chip surface, features tight wavelength uniformity, and scales well in arrays. Integrating these technologies at the device or system level balances power density, beam quality, and reliability while controlling total cost of ownership.
What is a VCSEL?
A VCSEL is a compact semiconductor laser that emits vertically from the wafer surface. It is easy to array, offers near-circular beams, and provides stable wavelength characteristics—ideal for 3D sensing, proximity detection, and short-reach links.

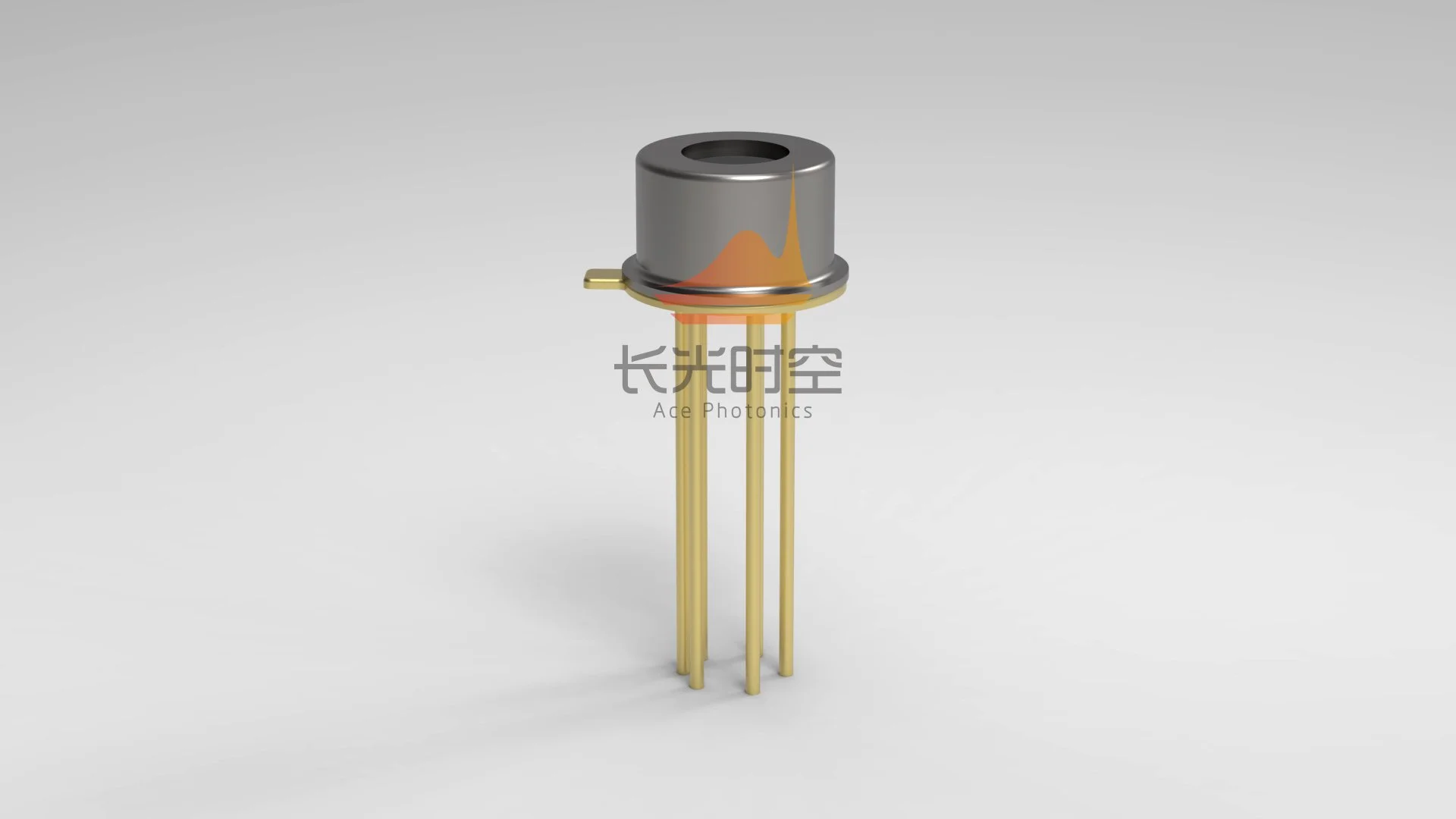

What is a high power laser diode?
High power laser diodes are typically edge-emitting devices designed for high optical output. Through bar/stack architectures and optical beam combining, they achieve the power density required for cutting, welding, surface treatment, pumping, and other power-hungry tasks.
The Value of VCSEL × High Power Laser Diode Integration
Key Advantages
Beam quality & shaping: VCSEL array uniformity, paired with edge-emitter power, enables controllable spots and energy distribution—improving weld and sintering consistency.
Wavelength stability: VCSELs’ narrow spectra and batch uniformity simplify temperature control and wavelength locking, reducing efficiency drift across operating conditions.
Power scalability: Edge-emitters provide the power “backbone,” while VCSEL arrays support illumination/sensing or coupling assistance for flexible system scaling.
Thermal performance: VCSEL arrays spread heat more evenly; high power bars/stacks rely on optimized heat sinks and micro-channel coolers. Together they extend lifetime.
Manufacturing & cost: Wafer-level VCSEL testing and mature edge-emitter supply chains improve yield predictability and streamline assembly for better cost control.
Typical Applications
Industrial manufacturing: laser welding, soldering, additive manufacturing, surface modification, precision cutting.
Medical & aesthetics: tissue coagulation, vessel closure, dermatology and hair-removal platforms.
Ranging & sensing: NIR illumination, structured light/ToF imaging, alignment and short-reach communications.
Connectivity & vision: short-reach interconnects, pose recognition, machine-vision lighting.
Integration Challenges and Practical Remedies
Core Pain Points
Thermal management & packaging: thermal resistance, warpage, and stress drive yield and lifetime.
Optical matching: NA, divergence, and coupling optics determine throughput and beam quality.
Wavelength compatibility: different temperature coefficients and spectral widths can limit peak efficiency.
Production consistency: stable process windows and traceable testing are essential from wafer to system.
Engineering Approaches (examples)
Materials & epitaxy: optimize strain and cavity length in GaAs/InP systems to balance threshold, slope efficiency, and reliability.
Device architecture: tapered waveguides, low-loss coatings, and VBG (volume Bragg grating) locking for beam and spectral stability.
Optical design: micro-lens arrays, reflective optics, and fiber-coupling schemes to reduce coupling loss.
Thermal design: CVD diamond submounts, CuMo/CuW bases, micro-channel cold plates, and vapor chambers to lower thermal resistance.
Test & binning: wafer-level LIV, near/ far-field, RIN, accelerated life (HTOL, power cycling), and burn-in to tighten lot-to-lot variation.
Quality Control and Reliability
A robust program spans DVT to PVT and includes:
LIV & threshold consistency: threshold current, slope efficiency, max power, wall-plug efficiency.
Beam metrics: M², divergence, ellipticity, far-field energy distribution.
Spectral behavior & drift: center wavelength, FWHM, temperature coefficient, long-term power stability.
Environmental & life tests: HTOL, power cycling, thermal shock, 85/85 damp heat, vibration/drop.
System-level stability: output stability and coupling efficiency retention under realistic duty cycles.
Market Trends and Outlook
Demand is rising across autonomous systems, robotics perception, AR/VR, intelligent manufacturing, and 3D sensing. As packaging materials improve, wavelength-locking becomes mainstream, and yield engineering matures, integrated solutions based on high power laser diode platforms and VCSEL arrays will continue to optimize performance, cost, and scalability.
FAQs
Q1: What’s the difference between a high power laser diode and a VCSEL?
A high power laser diode (typically edge-emitting) prioritizes optical output and efficiency. A VCSEL emits vertically, arrays easily, and offers consistent, round beams and tight wavelength control. Combined, they deliver controllable power with stable illumination/sensing.
Q2: Which applications benefit most from integration?
Industrial welding/cutting, medical treatment sources, AR/VR NIR illumination, 3D sensing, and short-reach interconnects—where beam shaping, thermal performance, and reliability matter.
Q3: What should designers watch first?
Thermal resistance and stress, optical coupling efficiency, wavelength/spectral matching, batch consistency, and traceable testing/burn-in throughout the build.
Q4: How do you maintain long-term stability?
Lower thermal resistance via advanced submounts and cooling, match NA and collimation, use temperature/current closed-loop control with optional VBG locking, and validate with accelerated life and power-cycling tests.
Conclusion
Integrating VCSELs with high power laser diodes is not simple add-on engineering—it’s a coordinated optimization of optics, thermals, packaging, and manufacturability. With the right device selection, architecture, and quality controls, systems can reach a better balance of power, beam quality, reliability, and cost—ready for volume deployment.
